temp working doc

Q: Look into the Telemetry SDK to find where key fulfillment for App Insight happens within a deployed azure function
- A: The key for local testing is stored in the local.settings.json file. This is not the case for a deployed function. Within a deployed function Azure stores the Connection string under the environment values in the instance of the function. (Prove this provided screenshots)
Test an end to end deployment for an azure function from Visual Studios to Azure Repo to ADO pipeline to Azure functions
- this will include mapping any API Keys/tokens requiring input

Azure Repo's in DevOps setup

Required
- Azure DevOps Account
- Azure DevOps Personal Access Token
Create GIT Repo
Run the following ADO provided command

git remote add origin https://{ADO Instance}@dev.azure.com/{ADO Org}/{Project}/_git/{Project}
git push -u origin --all

Password for 'https://{ADO Instance}@dev.azure.com': {input PAT}
No refs in common and none specified; doing nothing.
Perhaps you should specify a branch.
Everything up-to-date

Commit and push code to the repo
It will then require device authentication follow the instructions provided in IDE

Setup Azure Function in Azure

Required
- Azure Subscription
Navigate to the Function App section in azure while logged into the relevant subscription.
Click + Create, Select Consumption (Note discuss) click select. Fill in the required fields.
Fill in later Storage Networking

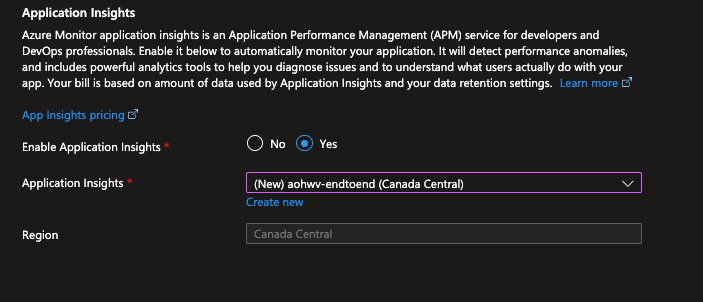

Monitoring
Enable Application Insights set to yes
Choose the relevant Application Insight
Click Review and Create

Azure Repo Pipeline Setup

Required
- Azure DevOps Account
- User Access Administrator or Owner
Click pipelines -> Create Pipeline
Select Azure Repos Git
Select the Repo
Select .NET Core Function App to Windows on Azure

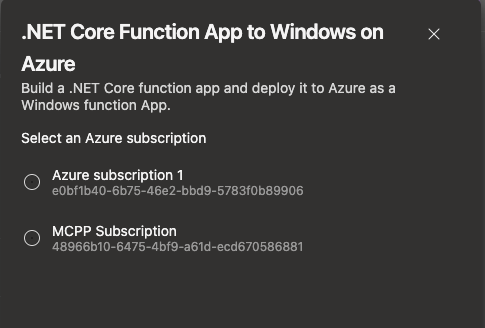

It will then Prompt you to choose the Azure Subscription
Select the relevant subscription and click continue.
It will then prompt you to choose the Function App name and the working directory.
Click Validate and Configure
It will generate a YAML file for the pipeline as this

# .NET Core Function App to Windows on Azure
# Build a .NET Core function app and deploy it to Azure as a Windows function App.
# Add steps that analyze code, save build artifacts, deploy, and more:
# https://docs.microsoft.com/en-us/azure/devops/pipelines/languages/dotnet-core

trigger:
- main

variables:
  # Azure Resource Manager connection created during pipeline creation
  azureSubscription: 'a0afb841-8319-4c01-b41b-f94c8ef8b31b'

  # Function app name
  functionAppName: 'aohwv-endtoend'

  # Agent VM image name
  vmImageName: 'windows-latest'

  # Working Directory
  workingDirectory: '$(System.DefaultWorkingDirectory)/'

stages:
- stage: Build
  displayName: Build stage

  jobs:
  - job: Build
    displayName: Build
    pool:
      vmImage: $(vmImageName)

    steps:
    - task: DotNetCoreCLI@2
      displayName: Build
      inputs:
        command: 'build'
        projects: |
          $(workingDirectory)/*.csproj
        arguments: --output $(System.DefaultWorkingDirectory)/publish_output --configuration Release

    - task: ArchiveFiles@2
      displayName: 'Archive files'
      inputs:
        rootFolderOrFile: '$(System.DefaultWorkingDirectory)/publish_output'
        includeRootFolder: false
        archiveType: zip
        archiveFile: $(Build.ArtifactStagingDirectory)/$(Build.BuildId).zip
        replaceExistingArchive: true

    - publish: $(Build.ArtifactStagingDirectory)/$(Build.BuildId).zip
      artifact: drop

- stage: Deploy
  displayName: Deploy stage
  dependsOn: Build
  condition: succeeded()

  jobs:
  - deployment: Deploy
    displayName: Deploy
    environment: 'development'
    pool:
      vmImage: $(vmImageName)

    strategy:
      runOnce:
        deploy:

          steps:
          - task: AzureFunctionApp@2
            displayName: 'Azure functions app deploy'
            inputs:
              connectedServiceNameARM: '$(azureSubscription)'
              appType: functionApp
              appName: $(functionAppName)
              package: '$(Pipeline.Workspace)/drop/$(Build.BuildId).zip'

Click Save and Run
